Microphones/preamplifiers

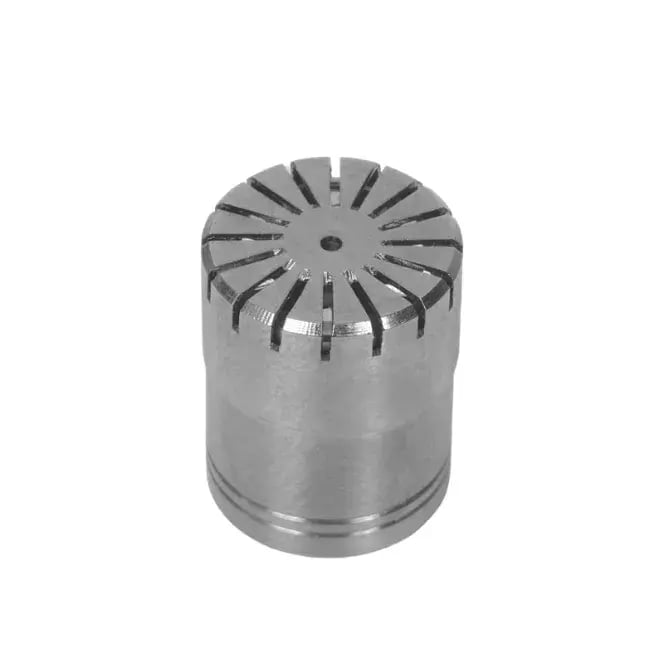

Nor1229

Free-field microphone

Nor1229 is a ½” free-field, high-sensitivity, self-polarised Class 2 measurement microphone designed for cost-efficient environmental noise compliance and continuous monitoring applications.

It is particularly well suited for multi-channel noise monitoring systems, building and occupational acoustics, and other setups that require reliable Class 2 accuracy with self-polarised operation.

Unlike many other Class 2 microphones in this segment, Nor1229 uses a nickel membrane and a stainless-steel housing, delivering stable performance with low sensitivity to environmental influences such as temperature variations, static pressure changes, and humidity.

Get a quote

Specifications

Cartridge size: ½” inch
Main standard: IEC 61672 Class 2
Polarisation voltage: 0 volt
IEC 61094-4 Designation: WS2F
Nominal sensitivity: 40 mV/Pa
Frequency response: ±3 dB 20-10 kHz
Maximum SPL (3% dist): 146 dB
Self noise: 24 dB(A)
Capacitance: 13 pF
Temperature coeff. (250 Hz): <-0.01 dB°C
Max. temperature: 80 °C
Static pressure coeff.: ±0.03 dB/kPa
Relative humidity coeff. (no condens.): ±0.006 dB/%

Diameter: 13.2 mm
Length: 16.6 mm
Weight: 7 g
