Microphones/preamplifiers

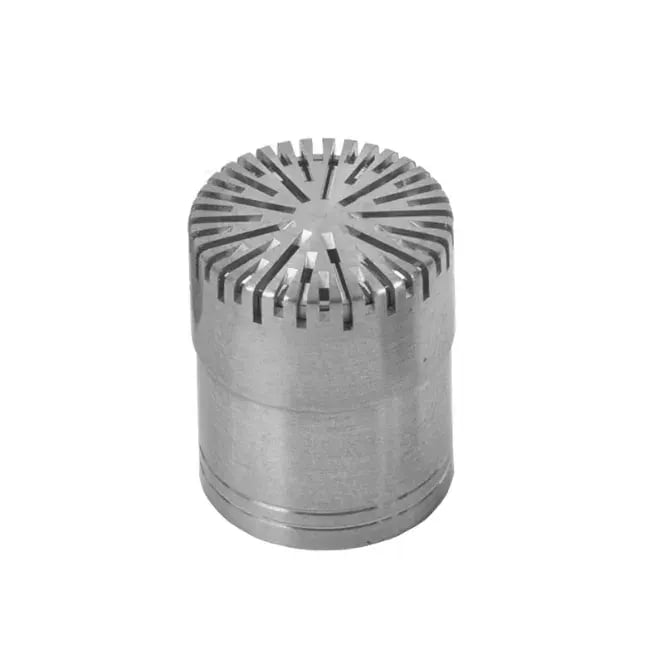

Nor1227

Free-field microphone

Nor1227 is a ½” free-field, high-sensitivity, self-polarised microphone designed for situations where environmental or safety requirements prevent the use of 200 V polarisation supplies.

It is equally well suited as a general-purpose IEC 61672 Class 1 microphone in sound level meters that operate without an external polarisation voltage.

Get a quote

Get a quote

Specifications

Cartridge size: ½” inch
Main standard: IEC 61672 Class 1
Polarisation voltage: 0 volt
IEC 61094-4 Designation: WS2F
Nominal sensitivity: 50 mV/Pa
Frequency response: ±1dB 5 Hz – 10k Hz, ±3 dB 3.15 Hz – 20 kHz
Maximum SPL (3% dist): 146 dB re. 20µPa
Self noise: 15 dB(A)
Capacitance: 14 pF
Temperature coeff. (250 Hz): <0.005 dB°C
Max. temperature: 120 °C
Static pressure coeff. (250 Hz): -0.008 dB/kPa
Relative humidity coeff. (no condens.): Not measurable dB/%

Diameter: 13.2 mm
Length: 16.2 mm
Weight: 6 g
